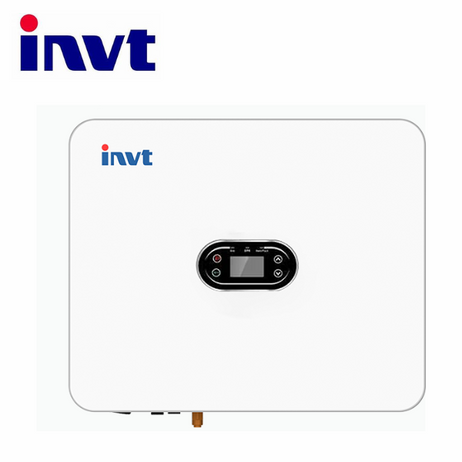

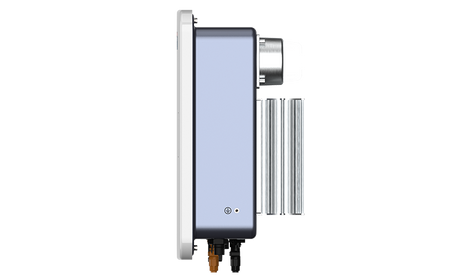

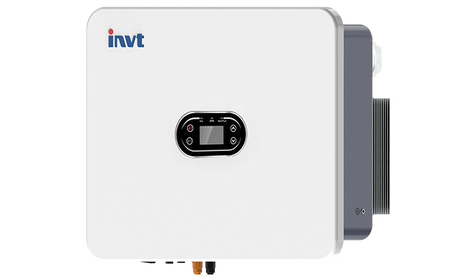

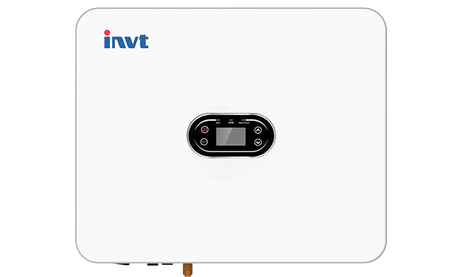

Inverter - Biến tần Hybrid INVT 5kW

Model　

XD5KTR

XD6KTR

Input（PV）　

Max. PV Input Power

7.5kW

9kW

Max. PV Input Voltage

600V

Start-up Voltage

100V

Rated Voltage

360V

MPPT Voltage Range

100V - 550V

Number of MPP Trackers

2

Number of String per MPPT

1/1

Max. PV Input Current

16A

Max. Short Circuit Current per MPPT

24A

Output（AC）　

Rated Output Power

5kVA

6kVA

Max. Output Power

5.5kVA

6kVA

Max. Output Current

22.7A

27.3A

Rated Voltage

230V

Rated Frequency

50Hz / 60Hz

THDi(@Rated Power)

<3%

Power Factor

0.8 leading~0.8 lagging

Output（EPS）　

Max. Output Power

5kVA

6kVA

Max. Output Current

Peak Output Power，Time

22.7A

7.5kW, 10s

27.3A

7.5kW, 10s

Rated Voltage, Frequency

230V, 50Hz

THDv(@Rated Power)

＜3%

Switch Time

＜10ms

Battery　

Battery Type

Lithium, Lead-acid

Battery Voltage Range

40V - 60V

Max. Charge / Discharge Current

100A

Communication

CAN

Efficiency　

Max. Efficiency

97.5%

EU Efficiency

97.2%

Battery Charge / Discharge Efficiency

95%

Protection　

DC Switch

Yes

DC Reverse Polarity Protection

Yes

Anti-islanding Protection

Yes

AC Short Circuit Protection

Yes

Residual Current Monitoring

Yes

Insulation Resistance Monitoring

Yes

Ground Fault Monitoring

Yes

Over Current / Voltage Protection

Yes

I-V Curve Scan

Yes

Battery Soft Start Protection

Yes

Surge Protection

Type II

AFCI Protection

Optional

Communication　　　

Display

LCD

Communication

RS485 / CAN / WIFI / 4G / LAN / Bluetooth

General Data　　　　　

Dimension（W x H x D）

490 x 395 x 200 mm

Weight

<20Kg

Operating Temperature Range

-30℃～+60℃

Cooling Method

Natural

Protection Degree

IP66

Max. Operating Altitude

4000m

Noise

≤25dB

Relative Humidity

0~100%

Self-consumption

＜10W

Topology

Hight Frequency Insolation (For battery)
