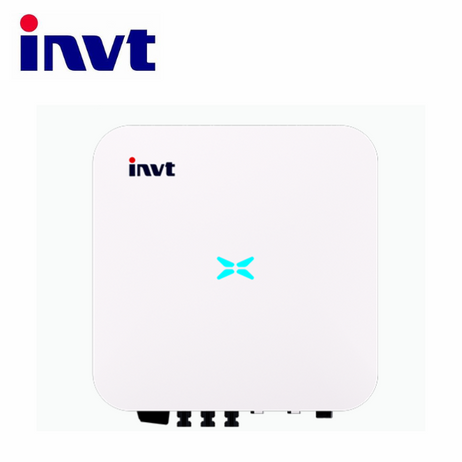

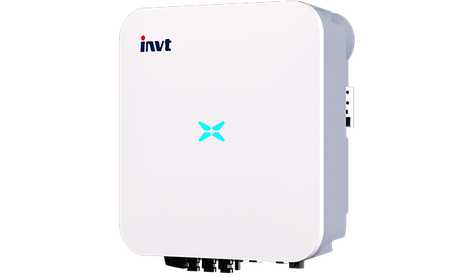

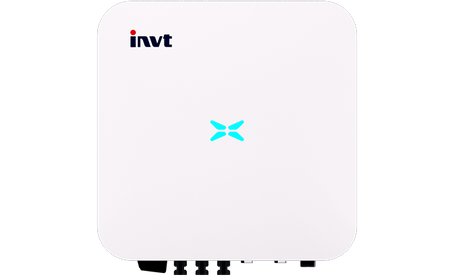

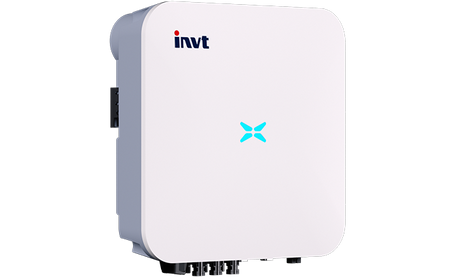

Model | XG8KTL | XG10KTL |
Input (DC) |
Max. Input Power | 12kW | 15kW |
Max. Input Voltage | 600V |
Start Voltage | 80V |
Rated Input Voltage | 360V |
Full-load MPP Voltage Range | 250V ~ 480V | 290V ~ 480V |
MPPT Voltage Range | 80V ~ 560V |
Number of MPP Trackers | 2 |
Number of String per MPPT | 1/1 |
Max. Current per MPPT | 20A |
Max. Short Circuit Current per MPPT | 26A |
Output (AC) |
Max. Output Current | 40A | 45.5A |
Rated Output Power | 8kW | 10kW |
Max. Output Power | 8.8kVA | 10kVA |
Rated Grid Frequency | 50Hz / 60Hz |
Rated Grid Voltage | 220Vac / 230Vac / 240Vac |
Power Factor | >0.99 (0.8 leading~0.8 lagging) |
THDi | <3% (Rated Power) |
Efficiency |
Max. Efficiency | 98.10% | 98.10% |
European Efficiency | 97.30% | 97.30% |
MPPT Efficiency | 99.90% |
Protection |
DC reverse polarity protection | Yes |
Anti-islanding protection | Yes |
AC short circuit protection | Yes |
Residual current monitoring unit | Yes |
Insulation resistance monitoring | Yes |
Ground fault monitoring | Yes |
Grid monitoring | Yes |
PV string monitoring | Yes |
Surge protection | Type II |
AFCI protection | Optional |
Communication |
Display | LCD / LED+APP |
Communication | RS485 / WiFi / 4G |
Standard Compliance |
Certification | IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116, CEI0-21, C10/C11, G98/G99,
RD244, UNE217001, UNE217002, TOR Erzeuger, AS4777, ABNT, NB/T 32004 |
General Data |
Dimensions (W x H x D) | 380 x 380 x 160 mm |
Weight | 13kg |
Operating Temperature Range | -30°C ~ +60°C |
Cooling Method | Natural | Smart Cooling |
Protection Degree | IP66 |
Max. Operating Altitude | 4000m |
Relative Humidity | 0 ~ 100% |
Topology | Transformerless |
Night Power Consumption | <1W |
● a：For AS4777, Rated Output Power of XG5KTL-S is 4999W.
● b：For VDE-AR-N 4105, Max. Output Power of XG4.6KTL-S is 4600VA. For AS4777, Max.Output Power of XG4.6KTL-S is 4999VA.
● c：For AS4777, Max. Output Power of XG5KTL-S is 4999VA.
● d：For AS4777, Max. Output Current of XG4.6KTL-S and XG5KTL-S is 21.7A.
