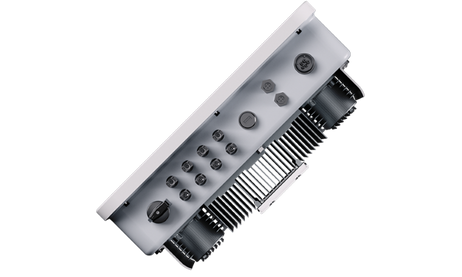

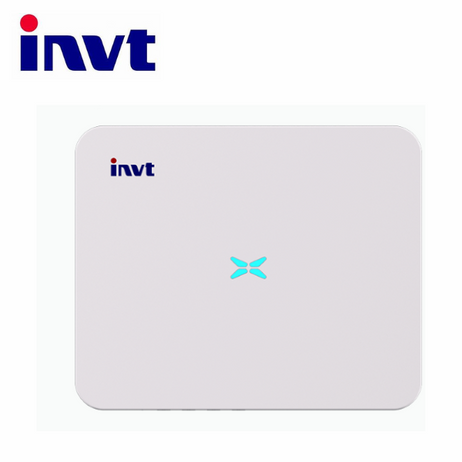

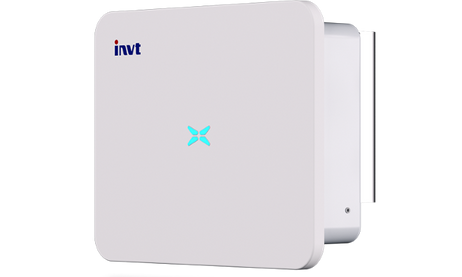

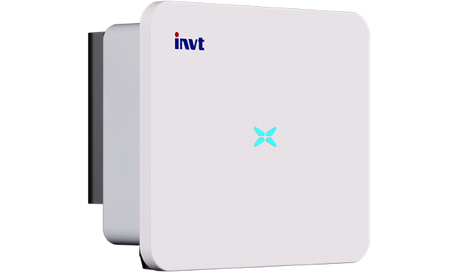

Inverter - Biến tần INVT XG10KTR 3 pha- Mẫu mới 2023

Model

XG10KTR

XG15KTR1

Input (DC)　　　　　　　　　　　

Max. Input Power

16kW

24kW

Max. Input Voltage

1100V

Start Voltage

160V

Rated Input Voltage

600V

Full-load MPP Voltage Range

450V ~ 850V

500V ~ 850V

MPPT Voltage Range

180V ~ 1000V

Number of MPP Trackers

2

Number of String per MPPT

1/1

1/2

Max. Current per MPPT

14A/14A

14A/28A

Max. Short Circuit Current per MPPT

18A/18A

18A/36A

Output (AC)　　　　　　　　　　　

Max. Output Current

15.9A

23.9A

Rated Output Power

10kW

15kW

Max. Output Power

11kVA

16.5kVA

Rated Grid Frequency

50Hz / 60Hz

Rated Grid Voltage

220Vac / 230Vac / 240Vac

Power Factor

>0.99 (0.8 leading~0.8 lagging)

THDi

<3% (Rated Power)

Efficiency　　　　　　　　　　　

Max. Efficiency

98.70%

European Efficiency

98.50%

MPPT Efficiency

99.90%

Protection　　　　　　　　　　　

DC reverse polarity protection

Yes

Anti-islanding protection

Yes

AC short circuit protection

Yes

Residual current monitoring unit

Yes

Insulation resistance monitoring

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

PV string monitoring

Yes

Surge protection

Type II

AFCI protection

Optional

Communication　　　　　　　　　　　

Display

LCD / LED/WiFi+App

Communication

Standard: RS485

Optional: WiFi/GPRS/Ethernet

Standard Compliance　　　　　　　　　　　

Certification

IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116, CEI0-21, C10/C11, G98/G99,
RD244, UNE217001, UNE217002, TOR Erzeuger, AS4777, ABNT, NB/T 32004

General Data　　　　　　　　　　　

Dimensions (W x H x D)

481x395x195 mm

Weight

13.5kg

Operating Temperature Range

-30°C ~ +60°C

Cooling Method

Natural

Natural

Protection Degree

IP66

Max. Operating Altitude

4000m

Relative Humidity

0 ~ 100%

Topology

Transformerless

Night Power Consumption

<1W
