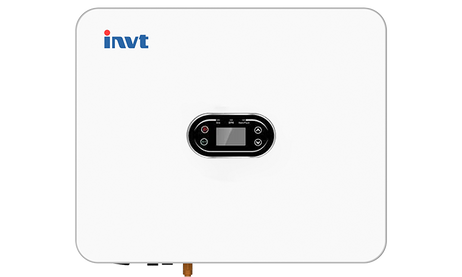

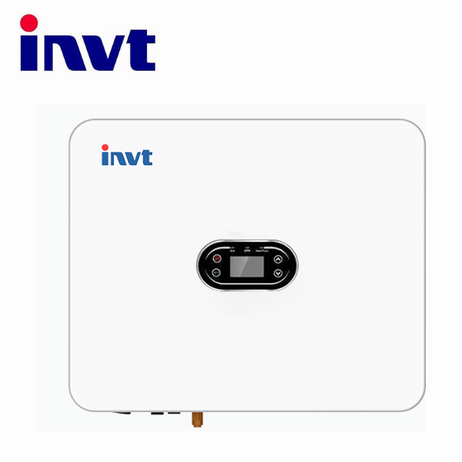

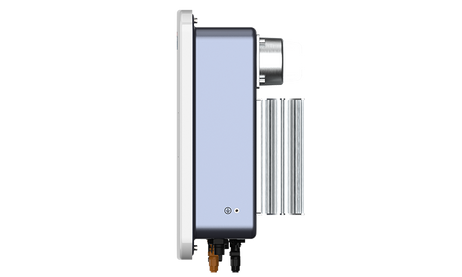

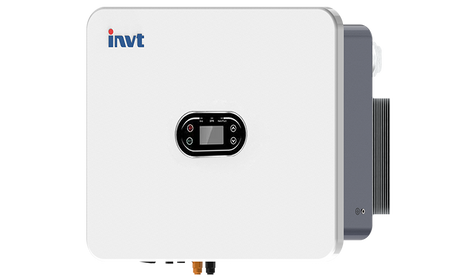

Inverter - Biến tần Hybrid INVT 6kW

SKU: 1229584

Liên hệ

Mô tả dự án

Model	XD5KTR	XD6KTR
Input（PV）
Max. PV Input Power	7.5kW	9kW
Max. PV Input Voltage	600V
Start-up Voltage	100V
Rated Voltage	360V
MPPT Voltage Range	100V - 550V
Number of MPP Trackers	2
Number of String per MPPT	1/1
Max. PV Input Current	16A
Max. Short Circuit Current per MPPT	24A
Output（AC）
Rated Output Power	5kVA	6kVA
Max. Output Power	5.5kVA	6kVA
Max. Output Current	22.7A	27.3A
Rated Voltage	230V
Rated Frequency	50Hz / 60Hz
THDi(@Rated Power)	<3%
Power Factor	0.8 leading~0.8 lagging
Output（EPS）
Max. Output Power	5kVA	6kVA
Max. Output Current Peak Output Power，Time	22.7A 7.5kW, 10s	27.3A 7.5kW, 10s
Rated Voltage, Frequency	230V, 50Hz
THDv(@Rated Power)	＜3%
Switch Time	＜10ms
Battery
Battery Type	Lithium, Lead-acid
Battery Voltage Range	40V - 60V
Max. Charge / Discharge Current	100A
Communication	CAN
Efficiency
Max. Efficiency	97.5%
EU Efficiency
