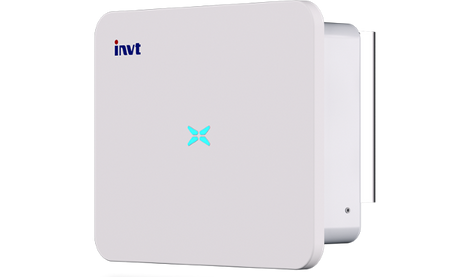

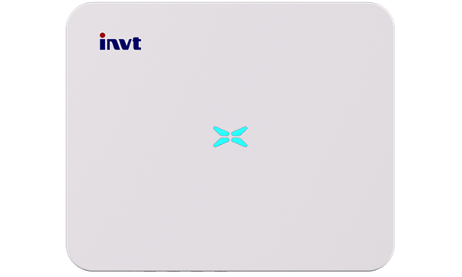

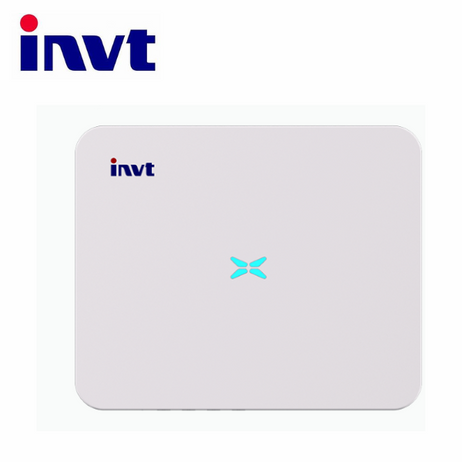

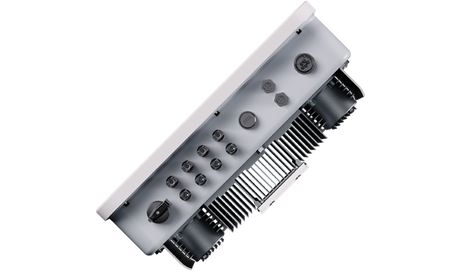

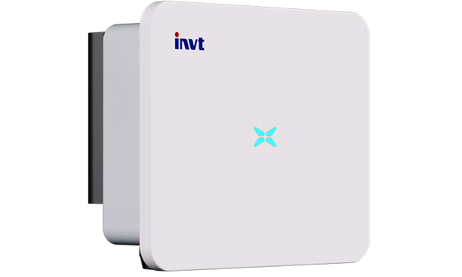

Inverter - Biến tần INVT XG15KTR1 3 pha- Mẫu mới 2023

SKU: 1229549

Liên hệ

Mô tả dự án

Model	XG10KTR	XG15KTR1
Input (DC)
Max. Input Power	16kW	24kW
Max. Input Voltage	1100V
Start Voltage	160V
Rated Input Voltage	600V
Full-load MPP Voltage Range	450V ~ 850V	500V ~ 850V
MPPT Voltage Range	180V ~ 1000V
Number of MPP Trackers	2
Number of String per MPPT	1/1		1/2
Max. Current per MPPT	14A/14A		14A/28A
Max. Short Circuit Current per MPPT	18A/18A		18A/36A
Output (AC)
Max. Output Current	15.9A	23.9A
Rated Output Power	10kW	15kW
Max. Output Power	11kVA	16.5kVA
Rated Grid Frequency	50Hz / 60Hz
Rated Grid Voltage	220Vac / 230Vac / 240Vac
Power Factor	>0.99 (0.8 leading~0.8 lagging)
THDi	<3% (Rated Power)
Efficiency
Max. Efficiency	98.70%
European Efficiency	98.50%
MPPT Efficiency	99.90%
Protection
DC reverse polarity protection	Yes
Anti-islanding protection	Yes
AC short circuit protection	Yes
Residual current monitoring unit	Yes
Insulation resistance monitoring	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
PV string monitoring	Yes
