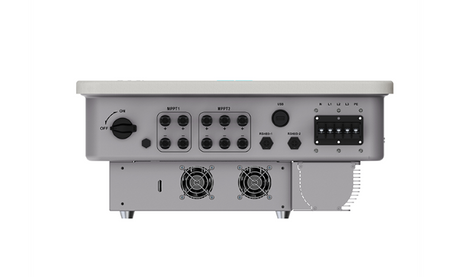

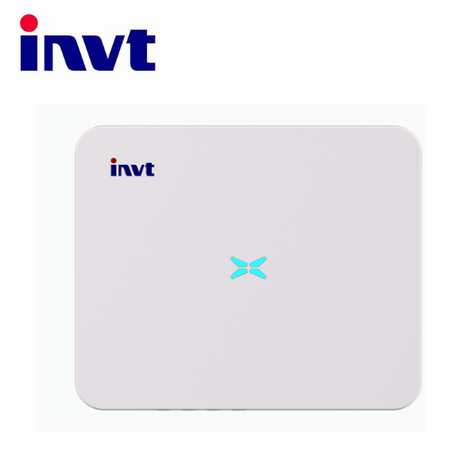

Inverter - Biến tần INVT XG20KTR- XG25KTR 3 pha- Mẫu mới 2023

　Model

XG20KTR

XG25KTR

Input (DC)

Max. Input Power

32kW

40kW

Max. Input Voltage

1100V

Start Voltage

250V

Rated Input Voltage

600V

Full-load MPP Voltage Range

480V ~ 800V

560V ~ 800V

MPPT Voltage Range

200V ~ 1000V

Number of MPP Trackers

2

Number of String per MPPT

2 / 2

2 / 3

Max. Current per MPPT

32A

32A / 48A

Max. Short Circuit Current per MPPT

40A

40A / 60A

Output (AC)

Max. Output Current

32.1A

39.8A

Rated Output Power

20kW

25kW

Max. Output Power

22.2kVA

27.5kVA

Rated Grid Frequency

50Hz / 60Hz

Rated Grid Voltage

230Vac / 400Vac, 3L / N / PE

Power Factor

>0.99 (0.8 leading~0.8 lagging)

THDi

<3% (Rated Power)

Efficiency

Max. Efficiency

98.40%

European Efficiency

98.00%

MPPT Efficiency

99.90%

Protection

DC reverse polarity protection

Yes

Anti-islanding protection

Yes

AC short circuit protection

Yes

Residual current monitoring unit

Yes

Insulation resistance monitoring

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

PV string monitoring

Yes

Surge protection

Type II

AFCI protection

Optional

Communication

Display

LCD / LED+APP

Communication

Standard：RS485
Optional：WiFi / GPRS / Ethernet

Standard Compliance

Certification

IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, IEC60068, IEC61683, EN 50549, IEC61727/IEC62116,
CEI 0-21, C10/C11, VDE 4105, VDE 0124, RD244, UNE217001, UNE217002,
NC RfG, AS4777, NB/T 32004, BIS

General Data

Dimensions (W x H x D)

534 x 440 x 220 mm

Weight

24kg

Operating Temperature Range

-30°C ~ +60°C

Cooling Method

Smart Cooling

Protection Degree

IP66

Max. Operating Altitude

4000m

Relative Humidity

0 ~ 100%

Topology

Transformerless

Night Power Consumption

<1W
