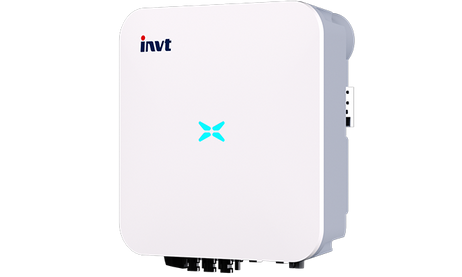

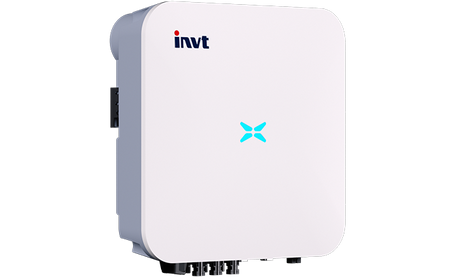

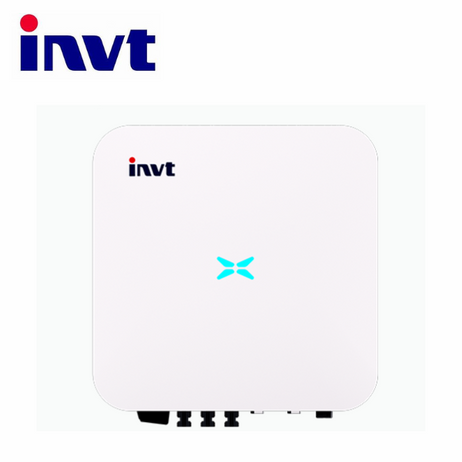

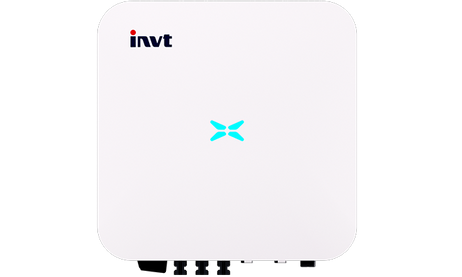

Inverter - Biến tần INVT XG8KTL 1 pha- Mẫu mới 2023

Model

XG8KTL

XG10KTL

Input (DC)　　　　　　　　　　　

Max. Input Power

12kW

15kW

Max. Input Voltage

600V

Start Voltage

80V

Rated Input Voltage

360V

Full-load MPP Voltage Range

250V ~ 480V

290V ~ 480V

MPPT Voltage Range

80V ~ 560V

Number of MPP Trackers

2

Number of String per MPPT

1/1

Max. Current per MPPT

20A

Max. Short Circuit Current per MPPT

26A

Output (AC)　　　　　　　　　　　

Max. Output Current

40A

45.5A

Rated Output Power

8kW

10kW

Max. Output Power

8.8kVA

10kVA

Rated Grid Frequency

50Hz / 60Hz

Rated Grid Voltage

220Vac / 230Vac / 240Vac

Power Factor

>0.99 (0.8 leading~0.8 lagging)

THDi

<3% (Rated Power)

Efficiency　　　　　　　　　　　

Max. Efficiency

98.10%

98.10%

European Efficiency

97.30%

97.30%

MPPT Efficiency

99.90%

Protection　　　　　　　　　　　

DC reverse polarity protection

Yes

Anti-islanding protection

Yes

AC short circuit protection

Yes

Residual current monitoring unit

Yes

Insulation resistance monitoring

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

PV string monitoring

Yes

Surge protection

Type II

AFCI protection

Optional

Communication　　　　　　　　　　　

Display

LCD / LED+APP

Communication

RS485 / WiFi / 4G

Standard Compliance　　　　　　　　　　　

Certification

IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116, CEI0-21, C10/C11, G98/G99,
RD244, UNE217001, UNE217002, TOR Erzeuger, AS4777, ABNT, NB/T 32004

General Data　　　　　　　　　　　

Dimensions (W x H x D)

380 x 380 x 160 mm

Weight

13kg

Operating Temperature Range

-30°C ~ +60°C

Cooling Method

Natural

Smart Cooling

Protection Degree

IP66

Max. Operating Altitude

4000m

Relative Humidity

0 ~ 100%

Topology

Transformerless

Night Power Consumption

<1W
